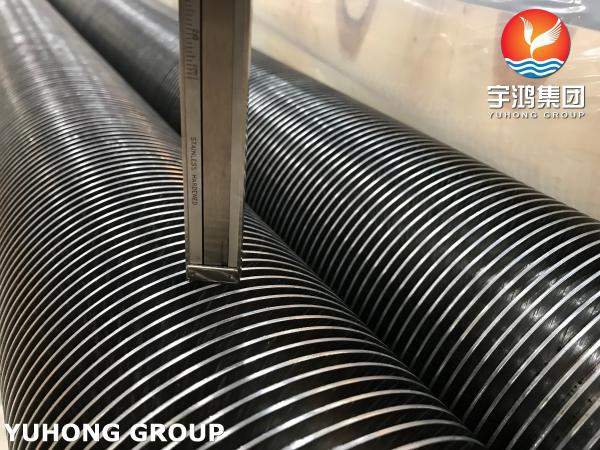

High Frequency Welding Fin Tube ASME SA335 P9 For Heat Transfer

High Frequency Welding Fin Tube ASME SA335 P9 For Heat Transfer

ASME SA335 P9 high-frequency welding fin tubes are specialized heat transfer components widely used in industries like power generation, petrochemical, oil and gas, and other heavy industries. These finned tubes are designed to enhance the efficiency of heat exchangers by improving heat transfer rates, reducing energy consumption, and optimizing thermal performance.

Material Specification:
ASME SA335 P9 is a seamless ferritic alloy steel pipe designed for high-temperature applications. Known for its excellent strength, durability, and corrosion resistance, this material is ideal for use in environments requiring high thermal and mechanical stability.

Key Features:

• High-temperature resistance

• Excellent creep strength

• Corrosion and oxidation resistance

Process Overview:
High-frequency welding (HFW) is an advanced technique used to bond fins to the surface of the base tube. In this process, high-frequency electric currents are applied to generate heat at the interface, creating a strong metallurgical bond without the need for additional filler materials.

Advantages of High-Frequency Welding:

• Strong, durable bond between fins and base tube

• Minimal thermal distortion of the base material

• High production efficiency and consistency

• Suitable for both ferrous and non-ferrous materials

Fields of Application

• Power Generation:

- Boiler economizers

- Superheaters and reheaters

- Heat recovery steam generators (HRSG)

• Petrochemical and Refining:

- Fired heaters

- Heat exchangers in refineries

- Catalytic cracking units

• Oil and Gas:

- Process gas coolers

- Gas-to-gas heat exchangers

• Other Applications:

- Waste heat recovery systems

- Chemical processing equipment

Benefits of ASME SA335 P9 High-Frequency Welding Fin Tubes

• Enhanced Heat Transfer:
The addition of fins increases the surface area for heat exchange, significantly improving efficiency.

• Durability:
The strong bond between the fins and the tube ensures long-term mechanical stability, even under high thermal and mechanical stresses.

• Corrosion and Oxidation Resistance:
The chromium and molybdenum content of SA335 P9 provides excellent resistance to oxidation and corrosion in high-temperature environments.

• Cost-Effective:
High-frequency welding is an efficient manufacturing process that ensures high-quality products while reducing production costs.

• Customizable:
These finned tubes can be tailored to meet specific operational needs, ensuring optimal performance.

ASME SA335 P9 Fin Tube

Heat Transfer Fin Tube

High Frequency Welding Fin Tube
